CONTROL UNIT TF33R
Description
3-Output Weather Control Unit for 24V and 230V Automation

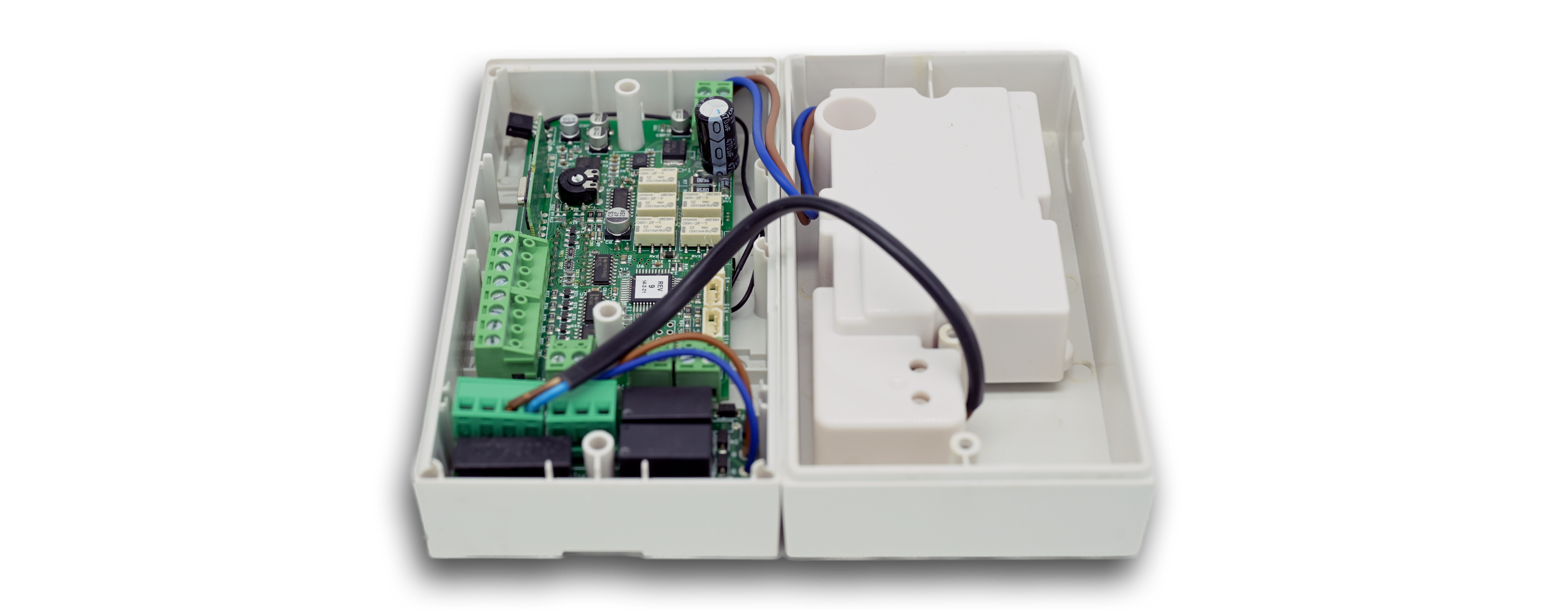

The TOPP TF33R is an innovative control and power unit designed for versatile window and shading automation. It supports simultaneous control of a 24V DC window actuator (e.g., C15, C20, C60), a 230V electric shutter, and a 24V electric blind, all from one compact wall-mounted unit.
Equipped with a built-in 433 MHz radio receiver and infrared LED, the TF33R can be controlled wirelessly using the TR8 remote control, or manually via roller-blind switches. Its housing includes a sliding access panel for easy programming and emergency closure.
When used with RW wind sensors and the RDC12 rain sensor, the TF33R provides automatic weather-based control. In case of strong wind or rain, the system will automatically close the window actuator, blind, and shutter in sequence, ensuring safety and energy efficiency.
The unit offers multiple programmable operation modes via dip-switch settings. The SP1 multifunction button enables emergency actions and pairing with the remote, while a blue LED indicator monitors the unit’s status. The TF33R is ideal for integrated automation of roof windows and solar shading systems in smart buildings.
Key Features – TOPP TF33R
- 🔹 Voltage: 24V DC & 230V AC mixed control
- 🔹 Outputs: 1 for 24V actuator (e.g. C15, C20, C60), 1 for 24V blind, 1 for 230V shutter
- 🔹 Built-in 433 MHz receiver – TR8 remote compatible
- 🔹 Supports wind (RW) and rain (RDC12) sensors
- 🔹 Emergency override button (SP1)
- 🔹 Blue LED status indicator
- 🔹 Programmable logic via dip switches
- 🔹 Manual control via 3 roller blind switches
- 🔹 Wall-mounted housing with sliding programming access
Applications
- 🔹 Automated roof windows (C15, C20, C60 actuators)
- 🔹 Electric roller shutters (230V)
- 🔹 Electric blinds (24V)
- 🔹 Smart building shading and weather protection
Need Help?
Use the form below to request product configuration support, availability, or compatibility details for the TOPP TF33R controller. Our experts are ready to assist your project.
Technical data
Technical Specifications – TOPP TF33R Weather Control Unit
| Technical Characteristics | Control unit TF33R |
| Power voltage | 230 V~50 Hz. |
| Output voltage | 2x 24V + 1 x 230V |
| Max power consumption | 32W / output |
| Max absorbed current | 0,5 A (24V) +1,32 A (230V) / output |
| Service type | S1-Continuous |
| Pre-set for | wind sensor (RW) rain detector (RDC12), remote controller (TR8) |
| Max number of remote controllers | 9 |
| Operating temperature | - 5 + 50 °C |
| Dimensions | 150x78x55 mm |
| Connectable actuators C15 + roller shutter + blind | 1 |
| Connectable actuators C20 + roller shutter + blind | 1 |
| Connectable actuators C60 + roller shutter + blind | 1 |
